Thermal Insulation Mortar
Inorganic thermal insulation mortar, Class A non-combustible fireproof material with low thermal conductivity, suitable for exterior wall insulation and building energy-saving retrofit systems.
Packaging & Delivery
| Packaging | 3-ply paper-plastic composite bag | Spec. | 25KG/bag | Volume | 60*40*15cm |
| MOQ | 1000KG | Lead Time | 1-7 working days | Shelf Life | 6 months (unopened, in dry conditions) |
| Trade Terms | FOB/EXW | Payment | T/T / L/C | Port | Shanghai / Ningbo |
Product Overview
Thermal Insulation Mortar is a new type of building energy-saving material formulated with lightweight aggregates (such as hollow microspheres, fly ash cenospheres, ceramic microspheres, etc.) as the core component, combined with cement, polymer additives, anti-crack fibers and functional admixtures, designed to reduce overall structural weight while providing excellent thermal insulation performance.
Product Features
Technical Specifications
| Parameter | Value | Test Standard | Test Result | Status |
|---|---|---|---|---|
| Dry Density | ≤450 kg/m³ | GB/T 20473‑2021 | 400 kg/m³ | Pass |
| Compressive Strength | ≥1.00 MPa | GB/T 20473‑2021 | 1.28 MPa | Pass |
| Thermal Conductivity | ≤0.085 W/(m·K) | GB/T 20473‑2021 | 0.085 W/(m·K) | Pass |
| Tensile Bond Strength | Type II ≥0.15 MPa | GB/T 20473‑2021 | 0.18 MPa | Pass |
| Linear Shrinkage Rate | ≤0.30% | GB/T 20473‑2021 | 0.23% | Pass |
| Consistency Loss Rate (2h) | ≤30% | GB/T 20473‑2021 | 24% | Pass |
| Softening Coefficient | ≤0.3 | GB/T 20473‑2021 | 0.25 | Pass |
| Combustion Performance | Class A (Non-combustible) | GB 8624‑2012 | Class A | Pass |
Advantages
Efficient Thermal Insulation
Lightweight inorganic aggregates effectively block heat transfer and reduce building energy consumption.
Class A Fire Safety
Class A fire performance, non-combustible at high temperatures, meeting stringent exterior wall fire safety requirements.
Crack-Resistant & Stable
Adapts to wall deformation during construction, reducing risks of hollowing, detachment and surface cracking.

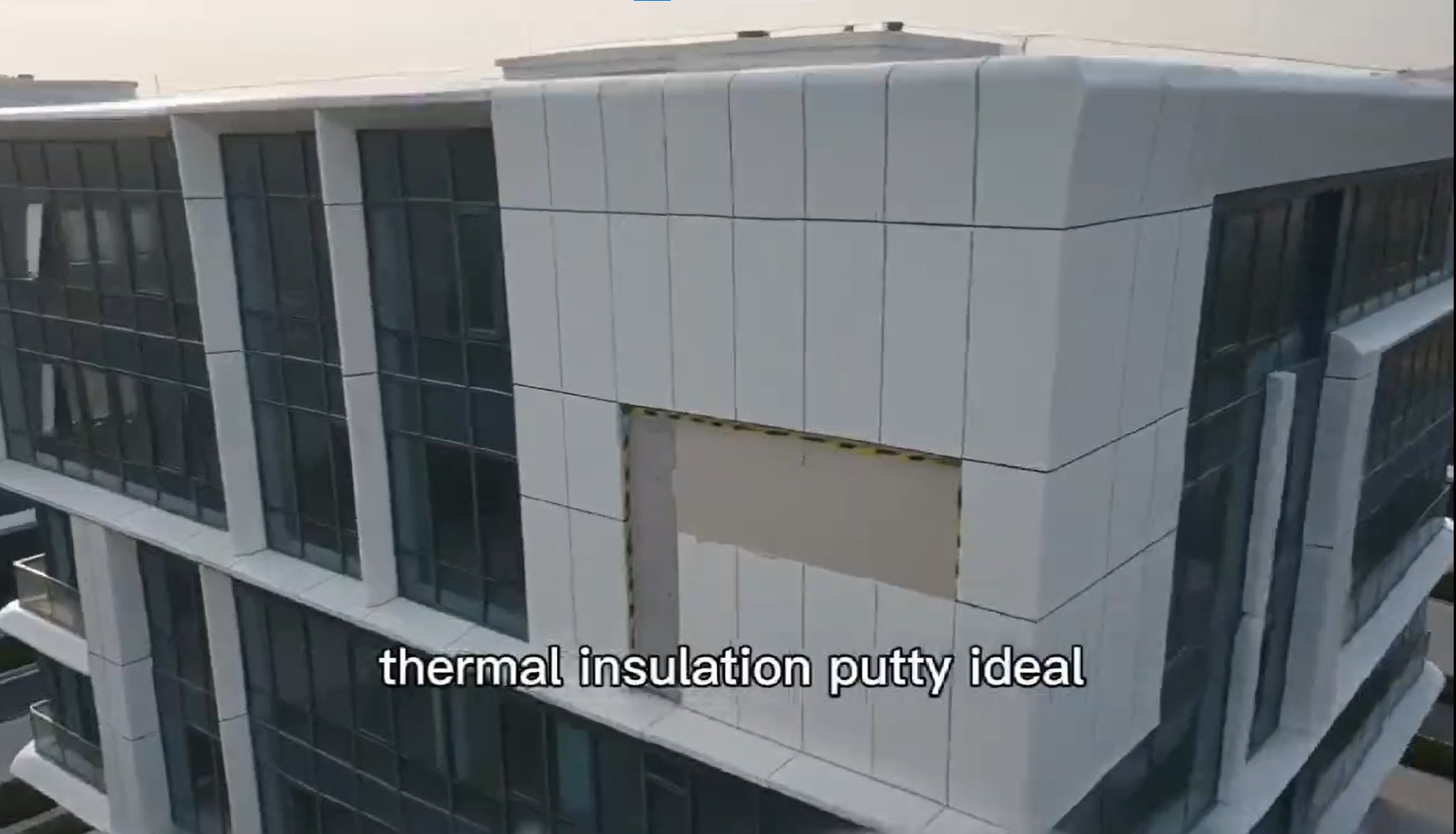

Applications & Operation Video
Trusted across diverse construction scenarios
Exterior Wall Insulation Systems
Inorganic thermal insulation layer for new building exterior walls.
Building Energy-Saving Retrofit
Exterior wall energy-saving renovation projects for old residential and existing buildings.
Residential and Commercial Buildings
Wall and ceiling thermal insulation projects for residential and commercial spaces.
Click the play button to start the video
Usage Guidelines
Water-to-powder ratio: Strictly follow manufacturer's ratio. Do not add extra water arbitrarily as it will affect insulation strength.
Working time: Use within 1 hour after mixing. Do not use material after hardening.
Application: Apply in layers. Do not apply too thickly in a single pass.
Curing: Maintain moisture curing for at least 7 days to ensure strength and insulation performance.
Construction temperature: Ideally between 5℃‑35℃
Storage & Shelf Life
Storage Condition
Store in a dry, ventilated place, protected from moisture.
Shelf Life
6 months (unopened, in dry conditions)
Successful Partnership Case Studies
East China Commercial Complex Waterproofing Project
South China Electronics Industrial Park Floor Project
Central China Large Hospital Construction Project
North China Residential Project Wall Works
