Barium Sulfate Radiation Shielding Mortar
High-density radiation shielding mortar designed for X-ray, gamma-ray and nuclear protection applications in medical, industrial and research facilities (JC/T 2676β2022 Type I).
Packaging & Delivery
| Packaging | 3-ply paper-plastic composite bag | Spec. | 25KG/bag | Volume | 60*40*15cm |
| MOQ | 1000KG | Lead Time | 1-7 working days | Shelf Life | 6 months (unopened, in dry conditions) |
| Trade Terms | FOB/EXW | Payment | T/T / L/C | Port | Shanghai / Ningbo |
Product Overview
Barium Sulfate Radiation Shielding Mortar, also known as barium sand, barite radiation shielding mortar or X-ray shielding mortar, is a specialized building material used for constructing radiation shielding walls, floors and ceilings.
Its core principle utilizes the high density of barium sulfate (specific gravity up to 4.2-4.5 g/cmΒ³) and the heavy atoms (barium) rich in its crystal structure, which effectively absorb and attenuate ionizing radiation such as X-rays and gamma rays. Compared to traditional concrete, barium sulfate mortar provides superior shielding performance at the same thickness, or significantly reduces wall thickness while achieving the same protection level, saving valuable building space.
Product Features
Technical Specifications
| Parameter | Value | Test Standard | Test Result | Status |
|---|---|---|---|---|
| Dry Density | 2.8β3.5 g/cmΒ³ | JC/T 2676β2022 (Type I β₯3.0) | 3.35 g/cmΒ³ | Pass |
| Specific Lead Equivalent | β₯0.12 mmPb/mm | JC/T 2676β2022 (Type I) | 0.13 mmPb/mm | Pass |
| Lead Equivalent (10mm thickness) | β₯2.0 mmPb | JC/T 2676β2022 (Type I conversion) | 2.15 mmPb | Pass |
| Cube Compressive Strength (28d) | β₯20.0 MPa | JC/T 2676β2022 | 22.4 MPa | Pass |
| Tensile Bond Strength | β₯0.5 MPa | JC/T 2676β2022 | 0.62 MPa | Pass |
| Water Retention | β₯70.0% | JC/T 2676β2022 | 74.2% | Pass |
| Shrinkage Rate (28d) | β€0.30% | JC/T 2676β2022 | 0.22% | Pass |
| Moisture Content | β€1.0% | JC/T 2676β2022 | 0.7% | Pass |
| Application Thickness | Single layer β€20mm, layered construction | JC/T 2676β2022 | β€20mm | Pass |
| Mixing Ratio | Water:Dry Powder β 0.15β0.18:1 | JC/T 2676β2022 | 0.16:1 | Pass |
| Setting Time | Initial β₯60min, Final β€12h | GB/T 1346 | Initial 72min, Final 10h | Pass |
| Early-Age Drying Crack Resistance | No cracks | JC/T 2676β2022 | No cracks | Pass |
Advantages
High-Density Shielding Performance
High barium sulfate content with specific lead equivalent β₯0.12mmPb/mm, achieving β₯2.0mmPb shielding at 10mm thickness.
Low Shrinkage & Crack Resistance
Low-shrinkage formulation with no early-age drying cracks, eliminating radiation leakage risks.
Easy & Controllable Construction
Traditional plastering application with ample working time; thick protective walls require layered construction.

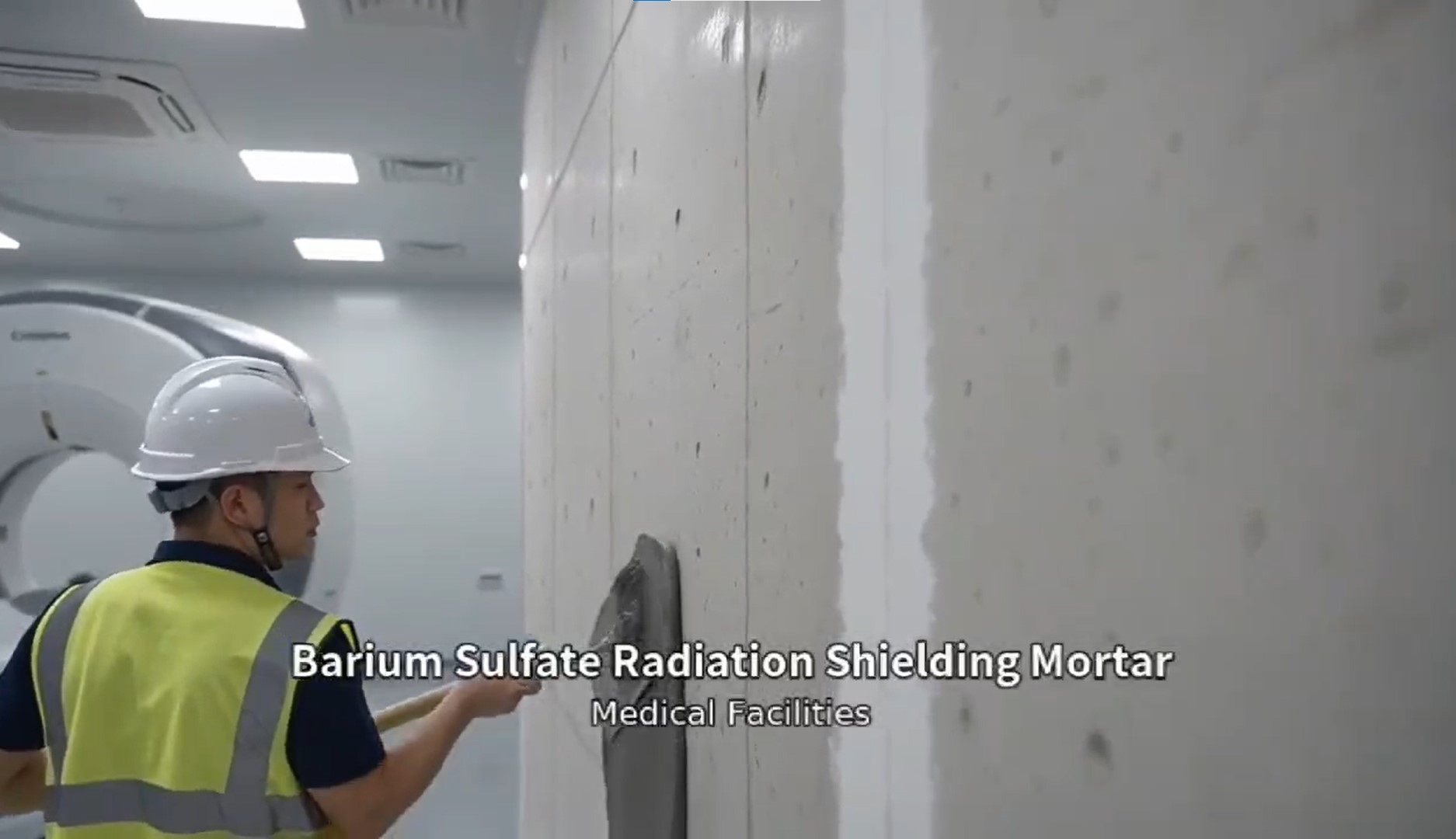

Applications & Operation Video
Trusted across diverse construction scenarios
Medical Facilities
X-ray rooms, CT scan rooms, radiotherapy departments, dental clinics and operating theaters.
Industrial Facilities
Industrial X-ray inspection rooms, non-destructive testing laboratories and radiation work areas.
Research Institutions
Nuclear research laboratories, particle accelerator facilities and radioactive material handling areas.
Click the play button to start the video
Usage Guidelines
Water-to-powder ratio: Strictly control at water:dry powder = 0.15β0.18:1. Do not add extra water.
Working time: Complete application before initial setting, reserve adequate working time.
Application thickness: Single layer β€20mm. Thick protective walls must be constructed in layers.
Curing: Maintain moisture for at least 7 days.
Construction temperature: Ideally between 5β~35β
Storage & Shelf Life
Storage Condition
Store in a dry, ventilated place, protected from moisture.
Shelf Life
6 months (unopened, in dry conditions)
