Anti-Static Cement Mortar
Functional cement-based flooring material designed for electrostatic control, industrial protection and durable floor applications.
Packaging & Delivery
| Packaging | 3-ply paper-plastic composite bag | Spec. | 25KG/bag | Volume | 60*40*15cm |
| MOQ | 1000KG | Lead Time | 1-7 working days | Shelf Life | 6 months (unopened, in dry conditions) |
| Trade Terms | FOB/EXW | Payment | T/T / L/C | Port | Shanghai / Ningbo |
Product Overview
Anti-Static Cement Mortar is a specialized functional mortar designed for flooring applications requiring anti-static properties. By incorporating conductive materials (such as conductive powder, conductive fibers, etc.) into traditional cement mortar, it forms a uniform conductive network that effectively and rapidly dissipates static charges, preventing static accumulation that could cause sparks or interference, providing safety protection for sensitive electronic equipment and flammable/explosive environments.
Core Working Principle:
Traditional cement mortar is an insulator with high volume resistivity. Anti-static mortar creates continuous, stable conductive pathways by incorporating conductive components (such as graphite, carbon black, metal powder or fibers) within the mortar matrix. When static charges are generated on the surface, they are quickly conducted to ground through these pathways, thereby eliminating static electricity.
Product Features
Technical Specifications
| Parameter | Value | Test Standard | Test Result | Status |
|---|---|---|---|---|
| Surface Resistance (Rs) | 1.0Γ10β΄ ~ 1.0Γ10βΉ Ξ© | SJ/T 11294β2018 | 2.6Γ10βΆ Ξ© | Pass |
| Volume Resistance (Rv) | 1.0Γ10β΄ ~ 1.0Γ10βΉ Ξ© | SJ/T 11294β2018 | 3.1Γ10βΆ Ξ© | Pass |
| Compressive Strength (28d) | β₯25.0 MPa | GB/T 17671 | 28.4 MPa | Pass |
| Flexural Strength (28d) | β₯8.0 MPa | GB/T 17671 | 9.2 MPa | Pass |
| Wear Resistance | β₯300% of standard cement mortar | SJ/T 11294β2018 | 340% | Pass |
| Bond Strength | β₯1.5 MPa (Concrete substrate) | SJ/T 11294β2018 | 1.7 MPa | Pass |
| Shrinkage Rate | β€0.15% | SJ/T 11294β2018 | 0.11% | Pass |
| Fluidity | 150β180 mm (Optional self-leveling type) | SJ/T 11294β2018 | 165 mm | Pass |
| Working Time | 30β60 min (Room temperature) | SJ/T 11294β2018 | 45 min | Pass |
Advantages
Stable Electrostatic Dissipation
Provides controlled surface and volume resistance to effectively prevent static electricity accumulation.
High Strength and Durability
Excellent compressive strength, wear resistance and long-term durability for industrial environments.
Chemical Resistance
Resistant to alkalis, oil stains and corrosive substances in demanding applications.
Applications & Operation Video
Trusted across diverse construction scenarios
Electronics and Semiconductor Facilities
Used in IC manufacturing workshops, semiconductor plants, electronic assembly lines and precision testing areas.
Communication Rooms and Data Centers
Suitable for server rooms, communication equipment rooms and data centers requiring reliable anti-static protection.
Flammable and Explosive Areas
Applied in petrochemical plants, fuel stations, chemical warehouses and other hazardous environments.

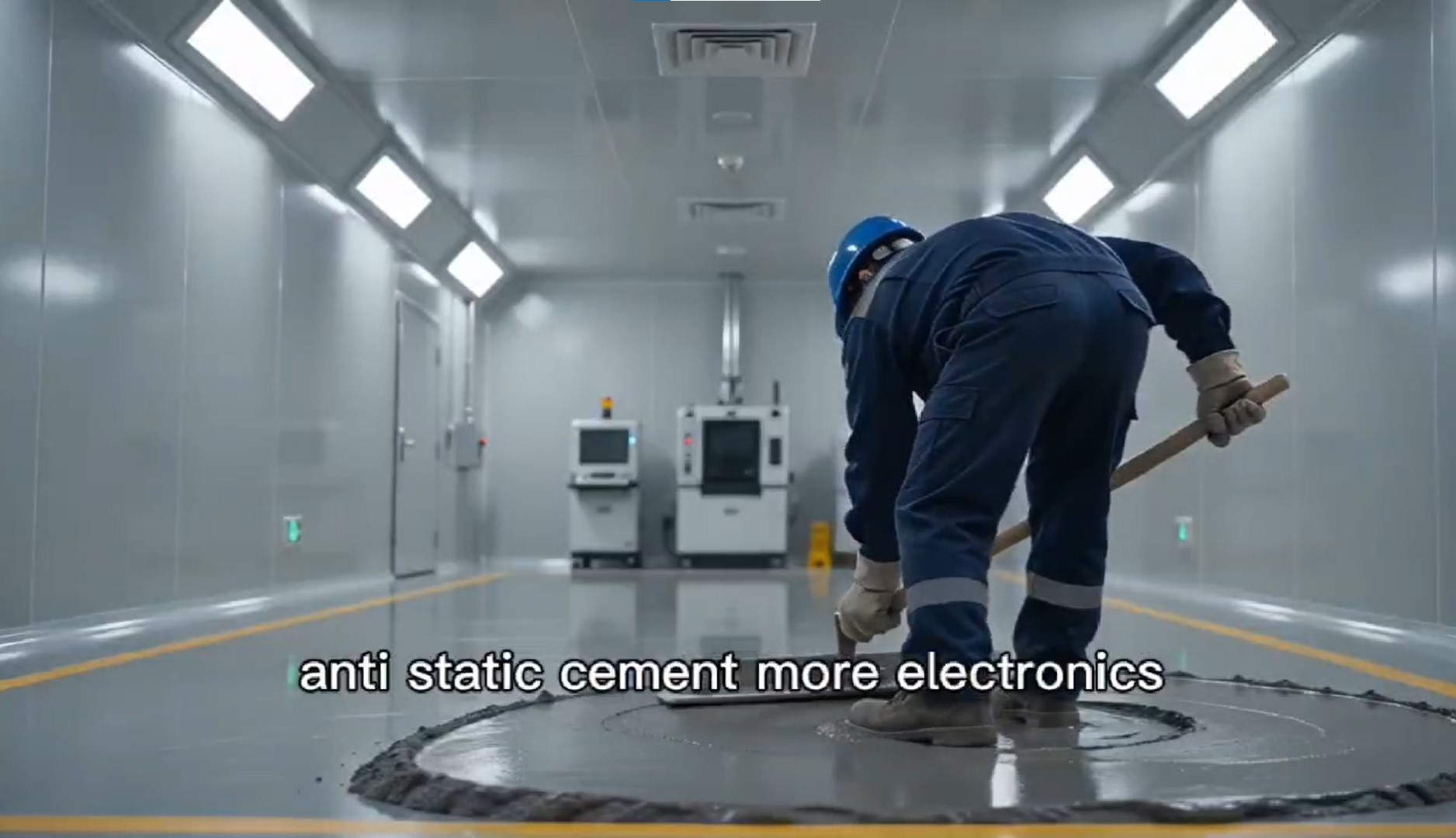

Click the play button to start the video
Usage Guidelines
Water-to-powder ratio: Follow manufacturer's specified mixing ratio
Working time: Use within 30β60 minutes after mixing
Application: Scrape like conventional mortar for smooth floor surfaces
Construction temperature: Ideally between 5β~35β
Storage & Shelf Life
Storage Condition
Store in a dry, ventilated place, protected from moisture.
Shelf Life
6 months (unopened, in dry conditions)
